RAPID® TOP-2-ROOF
TT Fixings
Stand: B1070

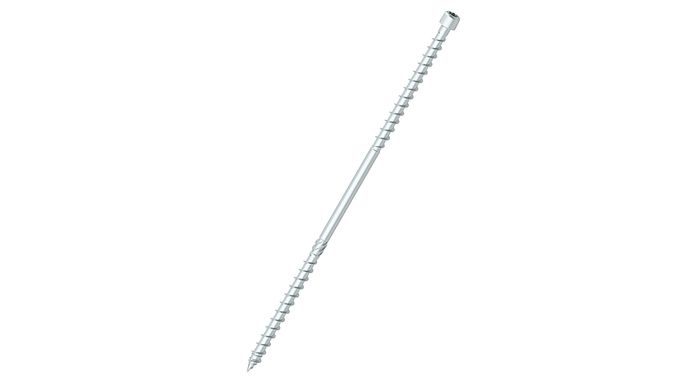

RAPID® Top-2-Roof provides the optimum geometry for mounting on-roof insulation.
Cylinder head
- Reduced blast effect
- Head is able to countersink deep into material
- Improved force transfer thanks to deeper drive
Coarse thread
- Coarse thread including patented follower thread, rolled out to the tip
- Faster screwing processes
- Lower screw-in torque
- No pre-drilling necessary
Friction part
- Reduces the screw-in resistance by reaming the wood around the shaft
Follower thread tip
- Ensures that screw drills quickly with low blast effect
-
Roof insulation systems
- Approved for hard and soft insulation
- Optimal for non-pressure-resistant (soft) insulation
- Especially for on-roof insulation: Absorbs thrust and compression forces
- The absorption of compression forces causes the insulation not to be pressed into the substrate nearly as much, which improves insulating capacity
- The second threaded part underneath the screw head keeps the counter batten optimally fixed in place
ON-ROOF AND EXTERIOR WALL INSULATION- Counter batten verification incl. screwing
- Gabled and monopitch roofs
- Wall insulation 90°
Loading
